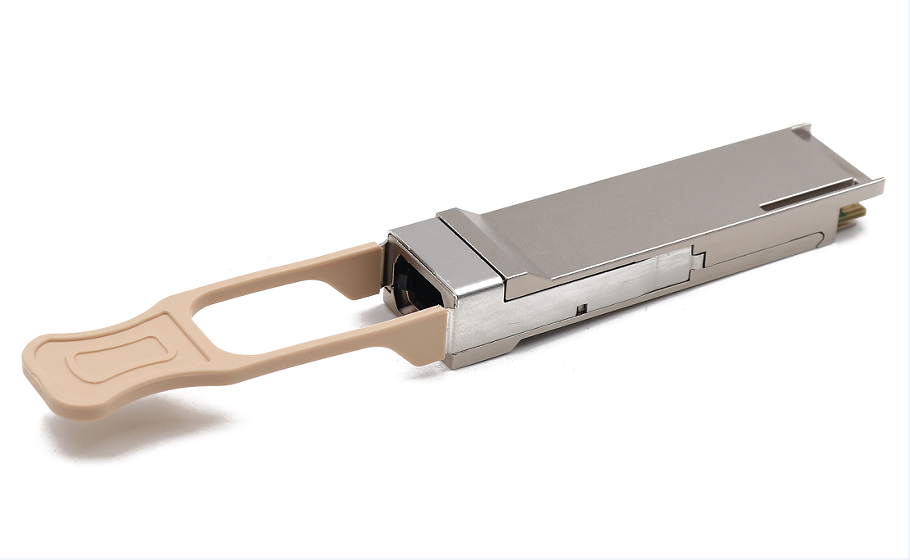

Features
l Support 100GBASE-SR4/100G Fiber Channel application
l
Compliant to QSFP28 Electrical MSA SFF-8636
l Multi rate of up to 25.78125Gbps
l Transmission distance up to 100m (OM4)
l +3.3V single power supply
l Low power consumption
l Operating case temp
Commercial: 0°C to +70 °C
l RoHS compliant
Applications
l 100GBASE-SR4 at 25.78125Gbps per lane
l InfiniBand QDR, EDR
l Other optical links
Absolute Maximum Ratings
Table2- Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Supply Voltage |
Vcc3 |
-0.5 |
- |
+3.6 |
V |
|
Storage Temperature |
Ts |
-40 |
- |
+85 |
°C |
|
Operating Humidity |
RH |
+5 |
- |
+85 |
% |
1 |
Receiver Damage Threshold per Lane |
PIND |
+3.4 |
- |
- |
dBm |
Note: 1 No condensation
Recommended Operating Conditions
Table 3- Recommended operating Condit紙雜ions
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Case Temperature |
TC |
0 |
- |
+70 |
°C |
||
Power Supply Voltage |
Vcc |
3.14 |
3.3 |
3.47 |
V |
||
Power Dissipation |
Pd |
- |
- |
2.5 |
W |
||
Bit Rate |
BR |
10.3125 |
25.78125 |
- |
Gbps |
||
Electrical Characteristics
Table 4- Electrical Characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Notes |
|
Input Logic Level High |
VIH |
2.0 |
- |
VCC+0.3 |
V |
||
Input Logic Level Low |
VIL |
VEE-0.3 |
- |
0.8 |
V |
||
Output Logic Level High |
VOH |
2.0 |
- |
VCC+0.3 |
V |
||
Output Logic Level Low |
VOL |
0 |
- |
0.4 |
V |
||
Transmitter | |||||||
Differential Data Input Swing |
Vin,P-P |
200 |
- |
1000 |
mVPP |
||
